二/三合一过滤机撬装生产工艺流程

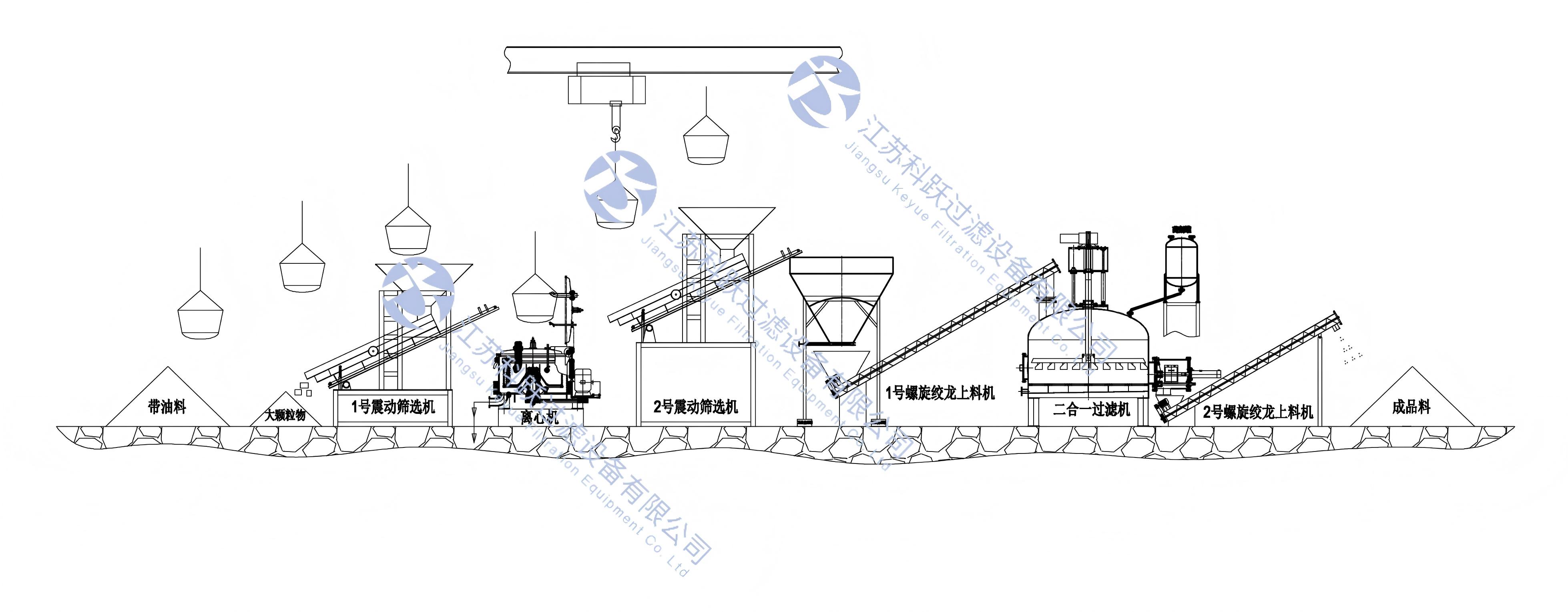

过滤洗涤二合一撬装生产工艺流程
Filter and wash two-in-one skid-mounted production proces flow

物料通过行车倒入1号震动筛选机，筛选机将大颗粒物筛除供后再送入离心机，通过离心方式将物料内的油分离出并收集起来，再通过2号筛选机进一步筛除
大颗粒物后送入料斗，料斗装入一定量物料后打开插板阀通过1号螺旋绞龙输送机送入二合一过滤机，往二合一过滤机内加入洗涤液，经过反复洗涤和过滤达
到产品要求后，打开二合一过滤机出料阀通过2号螺旋绞龙输送机将输送至成品区装袋。
Materials are dumped intothe No.1 vibrating screen by the trolley, the screen removes large particles and then sendsthem into the centrif, which separates
and collects the oil in the materials through centrifugation,and then sends them into the hopper after beingfurtherscreened by the No.2 screen to remove
large.When the hopperi filed witha certain amount of material,the plugvalveis opened and the materalis sent intothe two-in-one filte by the No.spiralauger conveyor.Wash water is aded to the two-in-one filter, and after repeated washing and fitering to met the product requirements,the discharge
valve of the-in-one filter is opened and the material is sent to the finished product area for bagging by the No.2 spiral auger conveyor.

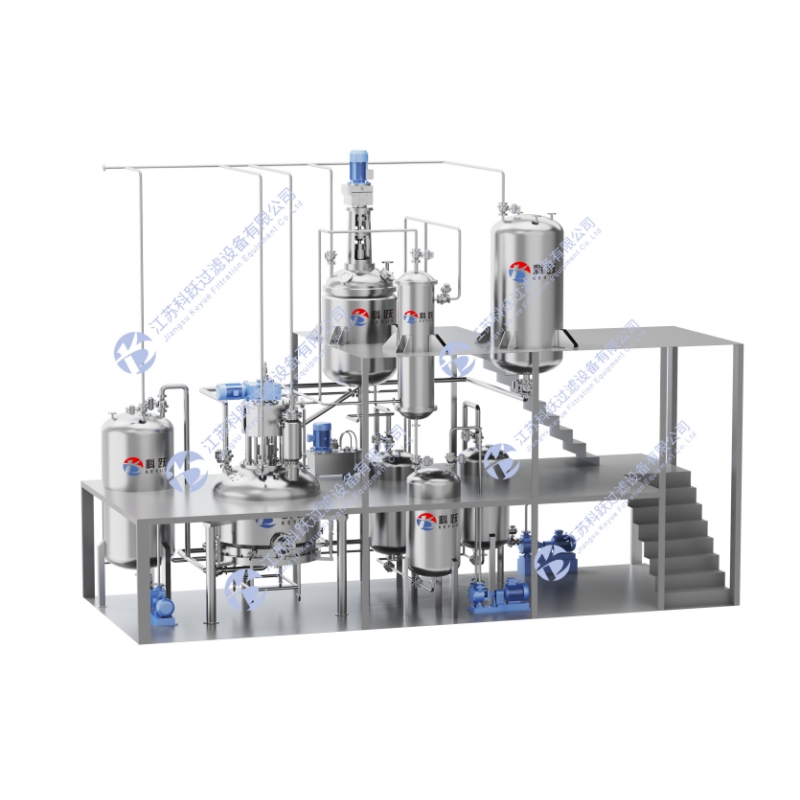

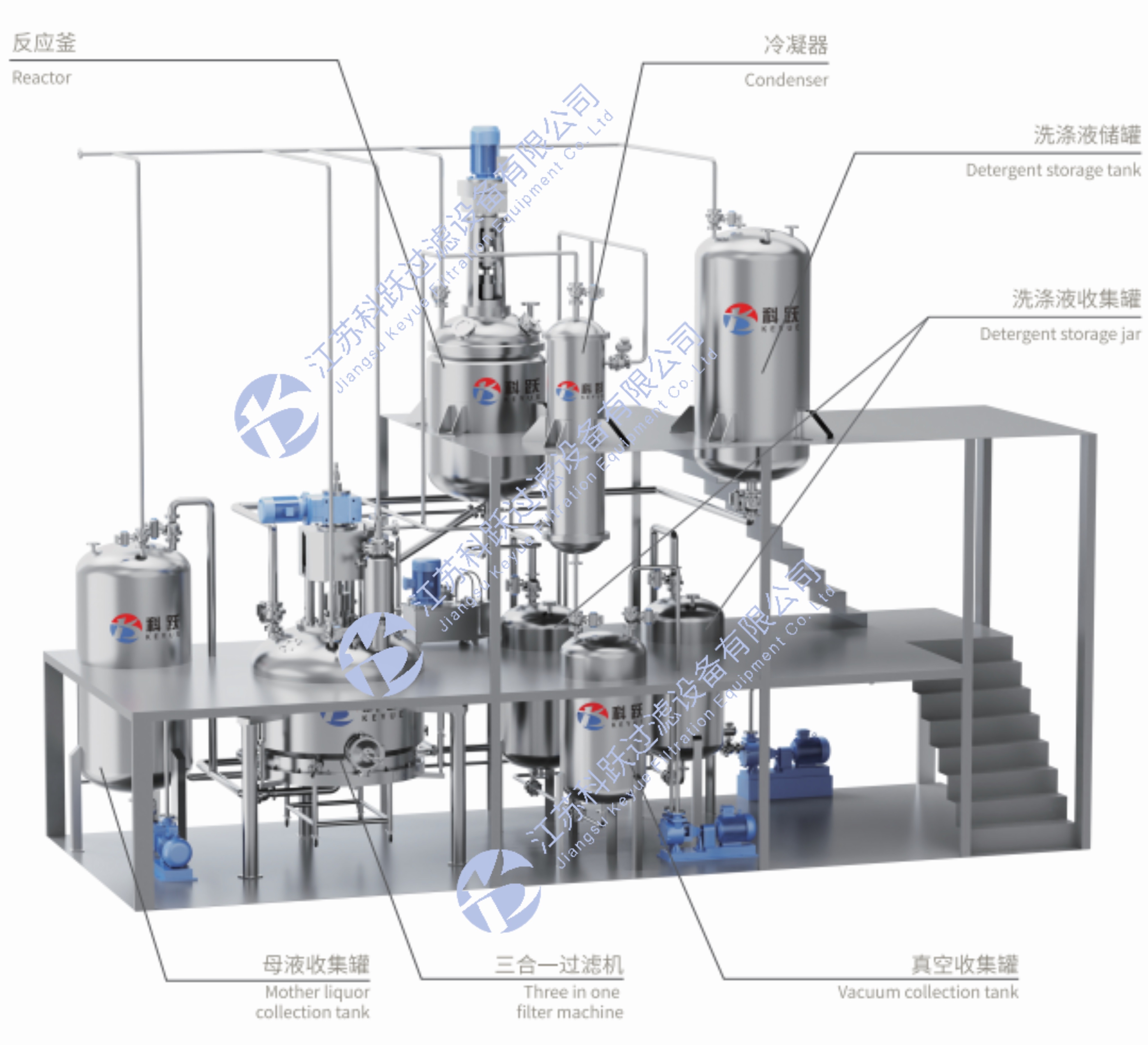

过滤洗涤干燥三合一撬装生产工艺流程
Fltering Washing Drying Thre-in-on Skid-mounted Production ProcessFlow

物料在反应釜内搅拌反应生成晶体，打开反应釜底部下展阀，通过高低位差将反应釜内固液混合物转移至三合一过滤机，向三合一过滤机内加压将滤液压入母液收集罐得到固体料，再将洗涤液加入三合一过滤机反复洗涤和过滤。启动真空泵，将三合一过滤机抽负压，固体物料在真空环境下加热干燥，在干燥若干小时后取样达标后，通过搅拌桨将物料刮铲入成品料斗。
Materias are stired in th reactor to react and generate crystals,the bottom valve of the reactor is opened,and the solid-liquid mixture in the reactor istransfered to the three-in-one filter though a highand lowleveldiference,and theflter presure is added to the three-in-one filter to obtain solid materials,and then the washin liquid s aded to the thre-in-one filter for repeated washing and fitration.Start the vacum pump,vacuum the thre-in-one flter,heatand dry the solid materals under vacuum,and take samples aer drying for several hours to met the standard,then scrape the materials into the finishedmaterial bin through th siring padle.
