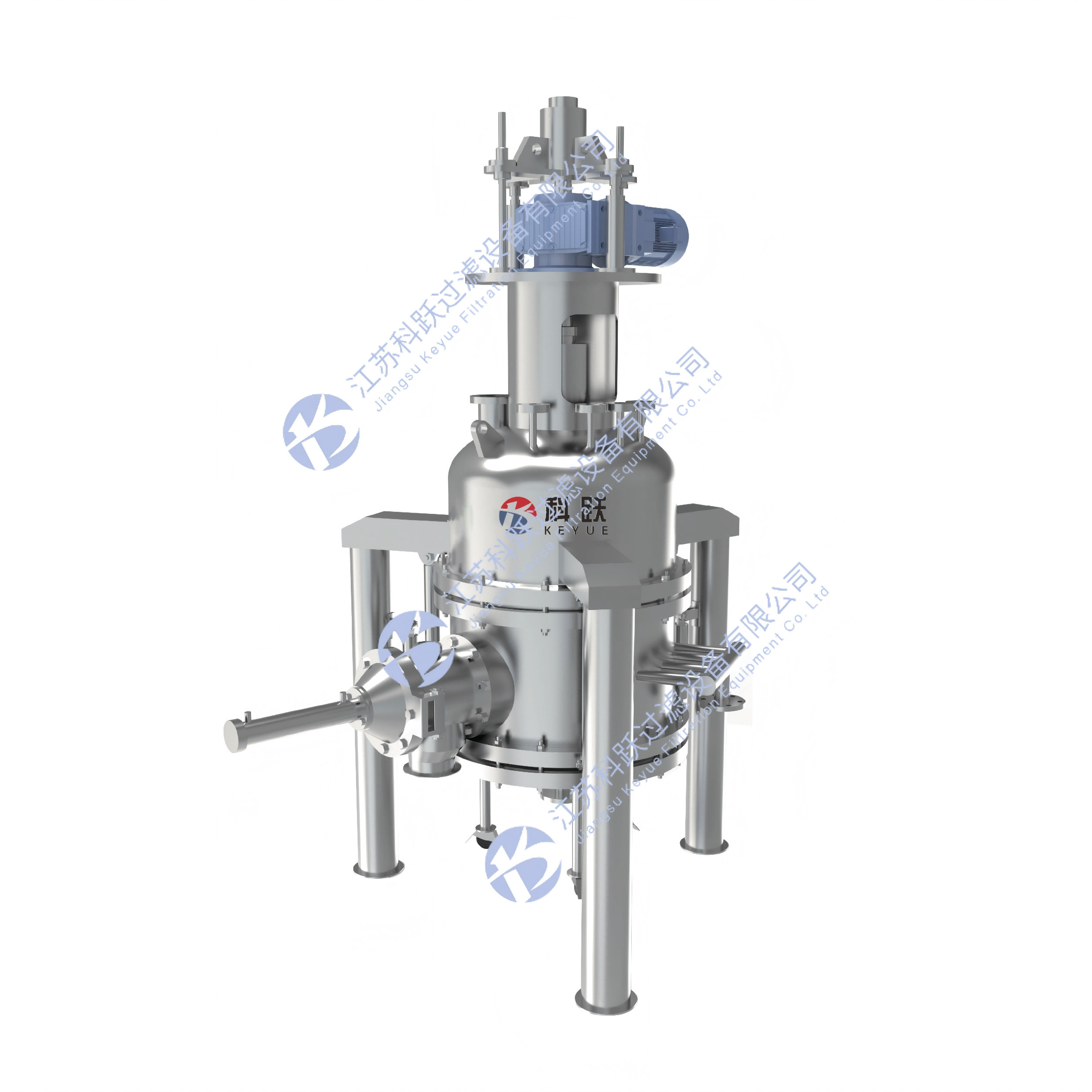

KYCL微孔精密二合一过滤机

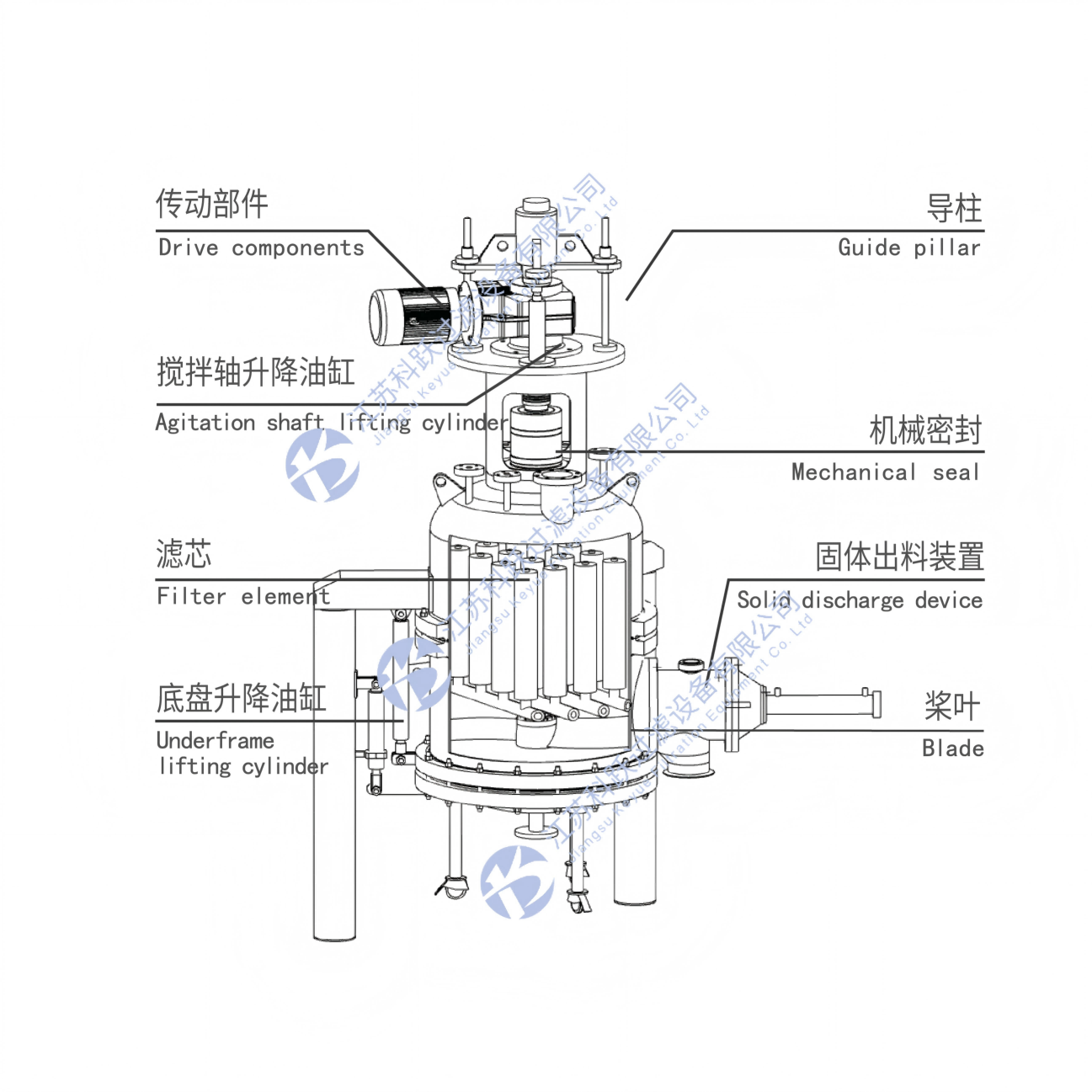

KYCL微孔精密二合一过滤机具有过滤、洗涤功能，其筒体内含有滤芯及滤板，滤芯可选用不锈钢、钛棒、PA/PE烧结滤芯、梅花管套布袋式滤芯等，底部滤板可选用烧结板或滤布，内部设置有桨叶，可对物料进行搅拌、提升和刮料操作、在卸料时自动推出滤饼。本机可进行真空过滤或加压过滤，在过滤过程中，主要采用过滤面积更大的滤芯过滤，最后设备内残液用底部滤板压干。过滤完成后加入洗涤液，通过桨叶搅拌充分洗涤，再重复上述过滤过程，达到要求后刮刀出料。
KYCL microporous precision 2-in-1filter has the function offitering and washing,the cylinder contains a fiterelement and a filter plate,the filter element can be selected stainless stel,titanium rod,PA/PE sintered flterelemen,the bag type filter element,ete.The bottom filter plate can be selected sintered plate or filter cloth,theinternal blade is provided,the material can be stired,lifted and scraped operation,and the filter cake can beautomatically launched duringunloading.The machine can be vacuum filtration or pressure filtration,in the filtration proces,mainly usingflterelement with larger filter area filtration,and fnallythe residual iquid in the equipment ispressed dry withthe bottom filter plate.After completion of filtration,add the washing liquid,stirthrough the blade to wash fully,and then repeat the abovefltration process,to meet the requirements after the scraper discharge.

产品优势Productadvantages
1、本机过滤面积是常规的二合一过滤机的数倍 且可根据客户需求设置任意的过滤面积。
2、可使物料在薄层滤饼状态下进行过滤 因而单位面积上的滤液速度较快，洗涤效果更好，对透气性差，粘度较大的物料也均适用。
3、使物料在较高的压力下进行加压过滤，也可进行真空抽滤。4、可对物料进行十分方便的反复多次过滤、洗涤因而本机特别适合洗涤要求高，需反复多次再浆洗涤过滤的物料，且可节省洗涤液。
5由于该机在密闭状态下操作，因而特别适合处理易燃易爆、有毒或剧毒的危险品及不允许有污染的鲜美食品、药品和生物制品等的过滤洗涤。设备小而紧凑，占地面积小，操作简单，节省人力。
6操作环境很好，无环境污染，无物料走失或浪费。
1.The flter area of the machine is several times that of the conven-
tional 2-in-1filter,and can be set according to customer needs,

2.It canflter the material in a thin layer flter cake state,so the filtration speed ofthe filtrate is faster per unit area,the washingeffect better,and it is also applicableto materials with poor perme-ability and high viscosity.
3.It allows the material to be filtered under high pressure and canalso be vacuumftered.
4.Can fter and wash the material multiple times very conveniently,so thismachine is particularly suitable for materials with highwashing requirementsthat need to be repeatedly re-slaked andfltered multiple times and it can alsosave washing liquid.
5.Since the machine operates in a closed state,it is particularlysuitable for thefiltration and washing offammable,explosive,toxicor toxic hazardousmaterials and fresh,delicious food,medicineand biological products that arenot allowed to be polluted.Theequipment is small and compact,takes up littlespace,is simpleoperate and saves manpower.
6.The operatingenvironment is very good,there is noenvironmen-tal pollution,no loss or waste of materials.
