- 详细介绍
概述overiew
1、含固量较多且出干渣的精密液体过滤；
2、0.3μm以上颗粒一次滤住；
3、快捷的气体反吹下渣同时再生滤管；
4、化学性能优越的刚性的PE、PA滤管能长寿命使用，大大降低运行费用。
5、密闭过滤，安全生产，无气味外溢，改善生产环境且占地面积小；
6、特殊设计的密封圈实现了大口径的气动排渣底盖的快速闭启；
7、易组成自动控制操作；
8、清理、维护方便、快速；
9、根据工艺要求可在机体外设保温夹套，机体内壁衬防腐材料层。
1.Preciseliquid fitration with a high solid content and dry residue;
2.Particles above 0.3μmarefiltered in one go;
3.Quick gas backflush to discharge residue and regenerate the filter tube simultaneously;
4.The nigid PE,PA filter tubewith superior chemical properties can be used for alonglife greatly reducing
operating costs.
5.Closed filtration,safe production,noodoroverfow,improv the production environmentand occupy
a smallarea;
6.pecialy designed seals enable quick opening and closing of the large-diameter pneumatic residue
discharge bottom cover;
7.Easy to form automatic control operation;
8.Easy and cleaning and maintenance;
9.According to proces requirements,an insulation jacket can be set outside the body,and the inner wallof the machine can be lined with a of corrosion-esistant material.

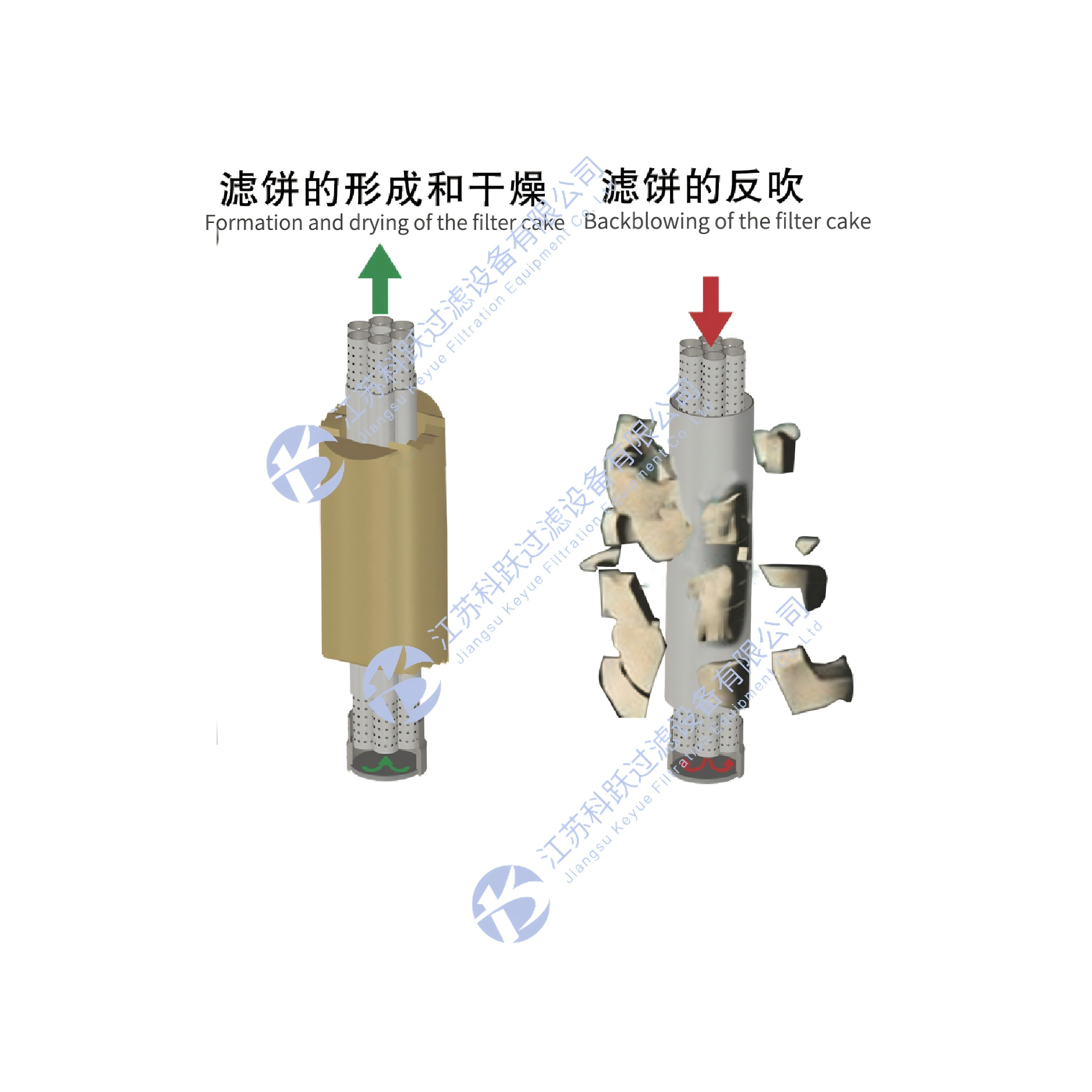

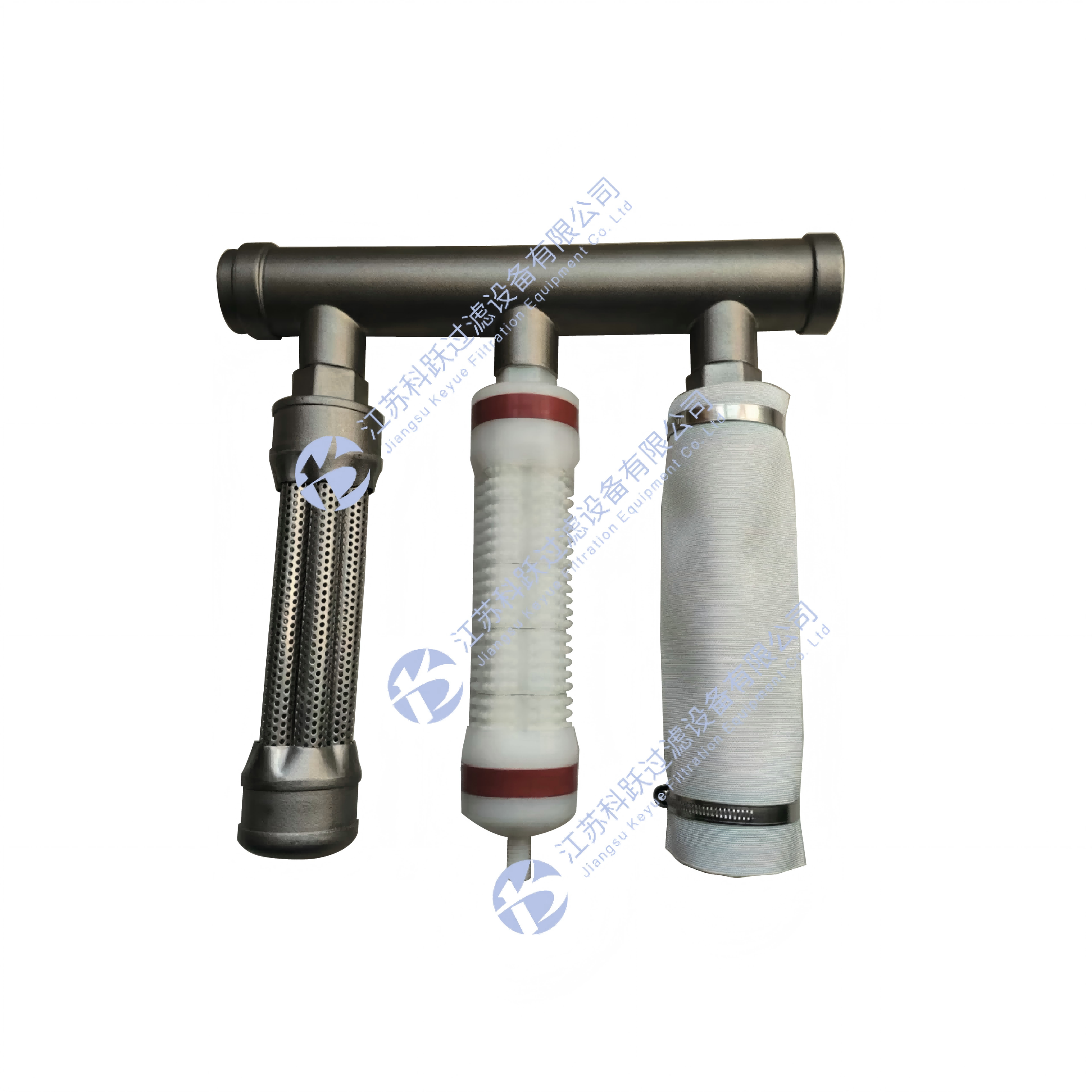

梅花管滤芯结构原理Structureprinciple ofplum blosom pipeflterelement
1、中心管为清液收集管。
2、周边多孔管为过滤介质的支撑。
3、滤芯外部套滤布作为过滤介质。
4、收集腔连接收集管和多孔管。
5、清液通过中心收集管离开过滤单元。
6、滤布外部形成滤饼层。
7、反吹气体使滤布膨胀进而促使滤饼脱落。
1.The central tube is the clea liquid cllection tube.
2.The peripheral perforated tube isthe support for the filter medium.
3.filter element is covered with filter clothas the filter medium.
4.The collection cavity connects the colection tube and the perforated tube.
5.The clear liguid leaves filter unit through the central collection tube.
6.The filte cake layer is formed outside thefiter cloth.
7.The back-blow gas makes the filter cloth expend whichinturm promotes the sheding ofthe flter cake.

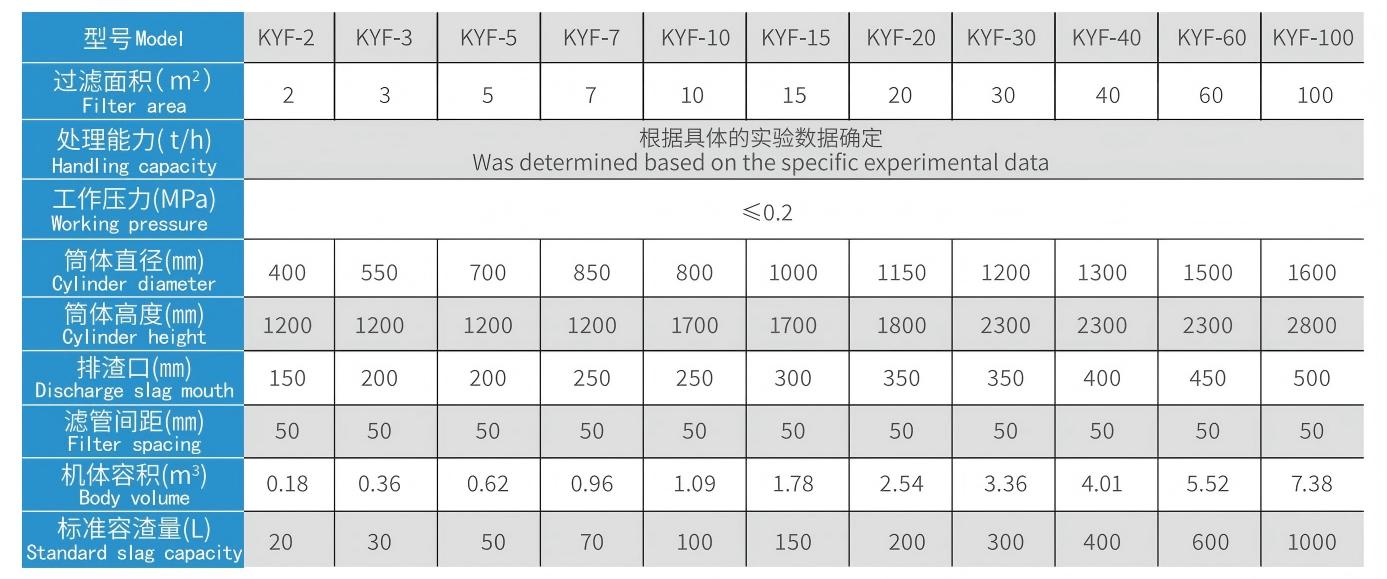

技术参数表Technical parameter table
