KYN层叠式过滤器

产品简介Product profle

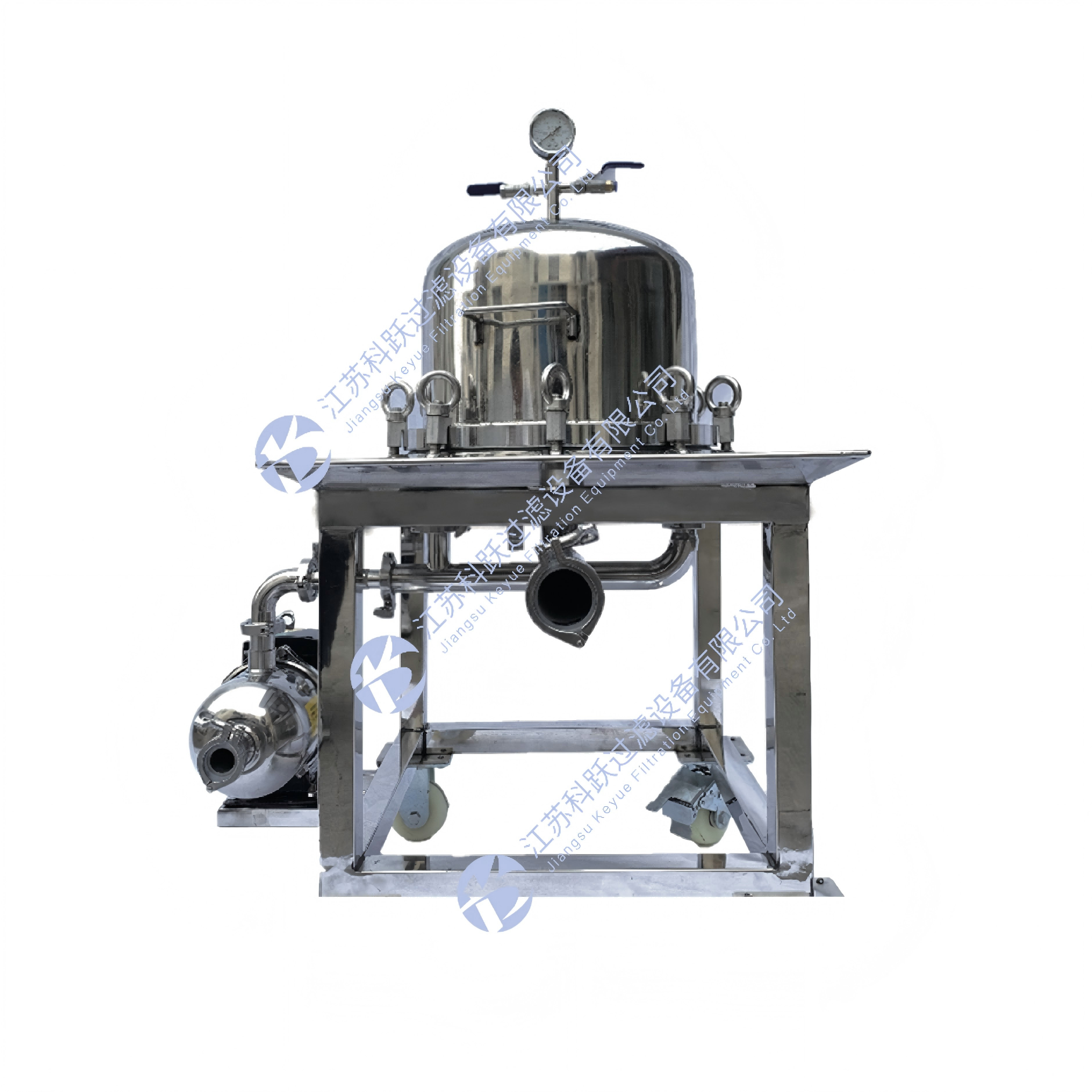

不锈钢层叠过滤器是一种新型立式板框过滤器，本机分常温型与保温型两种，其中保温型适用于粘性液体及温度低易结晶液体过滤使用，保温型加热方式有：蒸汽加热、热水循环保温加热以及导热油电加热这三种。
本机可以完成脱色、脱碳、粗滤等初级过滤，精滤、半精滤等深层过滤。同时拥有：流量大、速度快、存活性炭多、过滤面积大、占地面积小、效率高、过滤精度高、操作方便、带回流装置(适合过滤活性炭时运用)等优点，同时可以通过提升网板框的高度来提升存储活性炭容量的大小。

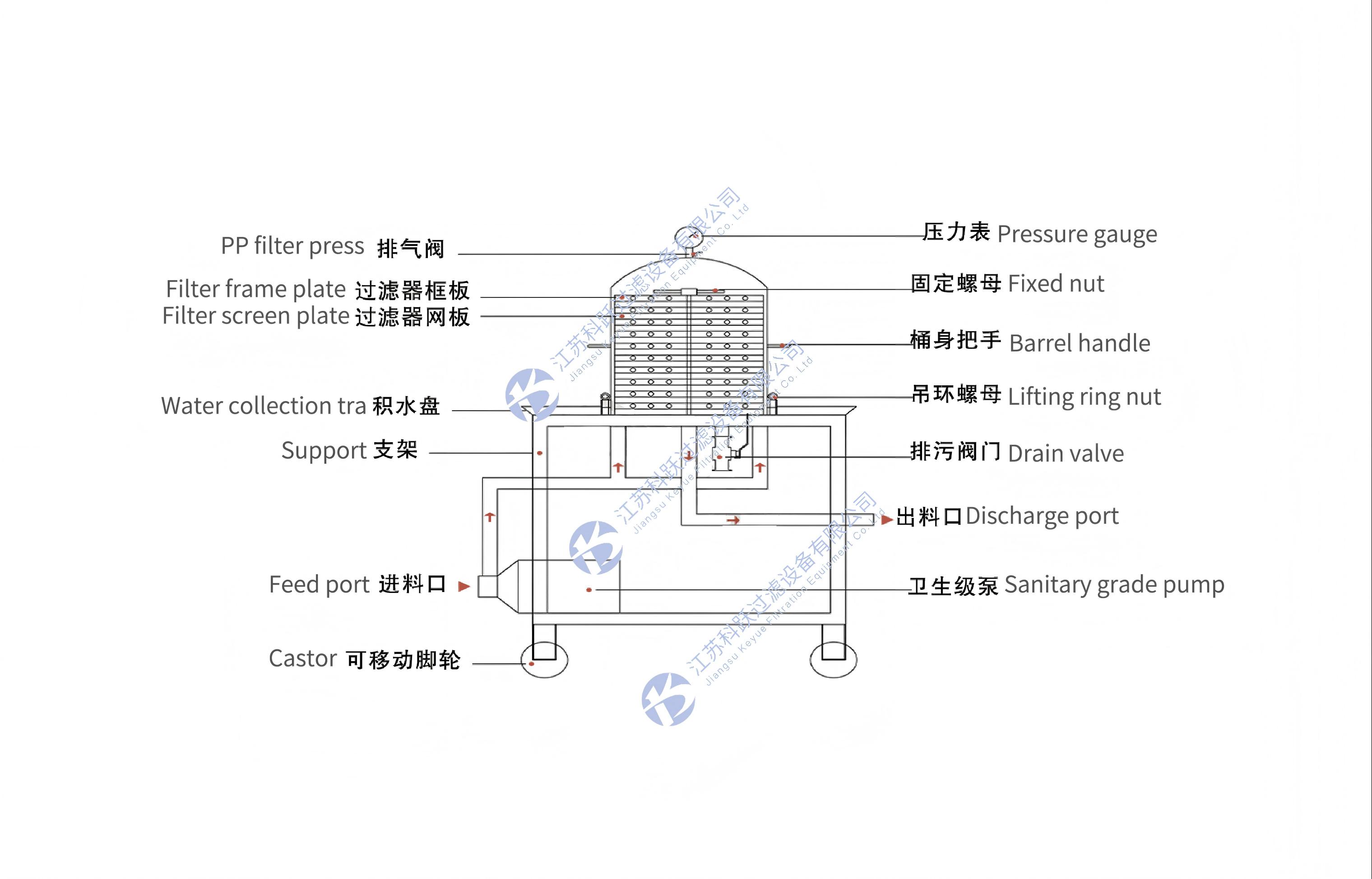

本机可承受0.5Mpa压力，选用机械法兰凹线压紧，靠过滤耗材密封，杜绝渗漏现象的发生。需要过滤时通过泵体输送物料通过管道，从中分二至三个进口进入桶体内部，再经过每层框板上的孔洞进入，通过过滤耗材，完成过滤的同时截留杂质，进入网板框，再通过网板框中心法兰上的多个孔洞流出合格的液体，途经输出管道流出完成过滤。
The stainles stel layered filter is a new type ofvertical plate and frame filter.This machine is divided into two types:normal temperature type and insulation.Among them,the insulation type is suitable for filtering viscous liquids and low-temperatue liquids that are prone to cystalization.Theheating methods of the insulation type:steam heating,hot water circulation insulation heating,and heat transfer oilelectricheating.
The machine can complete primaryfitration uch as decolorization,decarbonization,and coarsefitration,aswell as depfiltration such as finefilrationsem-fin filtration.It also hasthe advantages oflarge flow rate,fast speed,a large amount ofactivated caron,large filtration area,small foprint,high,high filtration accuracy,convenient operation,and a backflowdevice (suitable fo use whenfitering activated caron).At the same time,the capacity ofthe activated storage can be increased by increasing the height of the net plate frame.
The machine can withstand a presure of0.5Mpa,and the mechanical flange concaveline is used for pressing,relying on sealing of thefiter consumablesto eliminate the occurence of leakage.When fitring,the material is transported through the pump body and pipeline,andeners the barel from twothre inlets,and thenentersthrough the holeson eachlayerof frame plate,and then pasesthrough the fiter onsumables,completing thefitration whileinterceptingimp,entering the net plate frame,and then flowing outof the qualifiedliqud through the multiple holes on the center fange ofthe net plateframe,and then flowing through the output pipeline to complete thefitration.

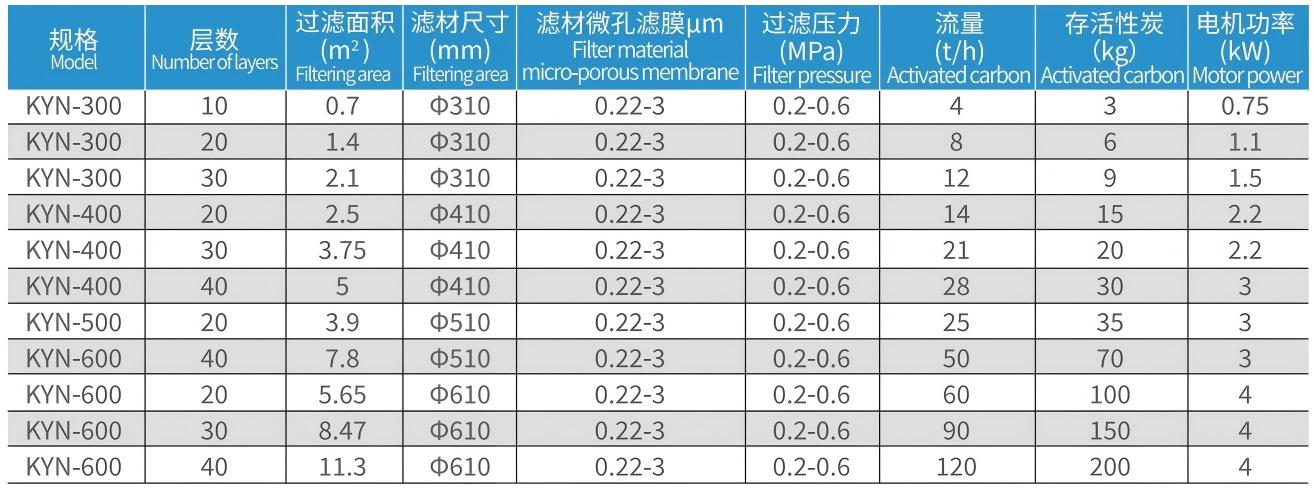

技术参数表Technical Parameters Table

注：需大型过滤面积的过滤器可定做

Note:Filters with large filter area can be custom-made.
